INDEX of 31020  AUTOMATIC TRANSMISSION / Lookup Code 31020								(1) (TXT)


Part Fitment                                                                                                                            (1)

===========================================================================================================================================================================
Part Number	Description		Trans Type			Production Date		Fitting Vehicle Options		Replaced By	Model Year	Engine Type
===========================================================================================================================================================================
31020-X2701	Automatic Transmission	NL28LFJ (L28E, L28ET)		07/1978-		AT				31020-X2707	1979-1983	L28E, L28ET
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
31020-X2707	Automatic Transmission	NL28LFJ (L28E, L28ET)		07/1978-07/1982		AT				-----------	1979 - 1983	L28E, L28ET
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
31020-X2770	Automatic Transmission	NL28LFJ / 3N71B  (L28ET)	12/1980-		L28ET. AT			-----------	1980-1983	L28ET
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
31020-X6703	Automatic Transmission	NL28LFJ / L3N71B (L28E, L28ET)	08/1982-		AT				-----------	1982-1983	L28E, L28ET
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1a) Nissan Parts Deal - 1979 280ZX
1b) Nissan Parts Deal - 1980 280ZX
1c) Nissan Parts Deal - 1981 280ZX
1d) Nissan Parts Deal - 1982 280ZX
1e) Nissan Parts Deal - 1983 280ZX

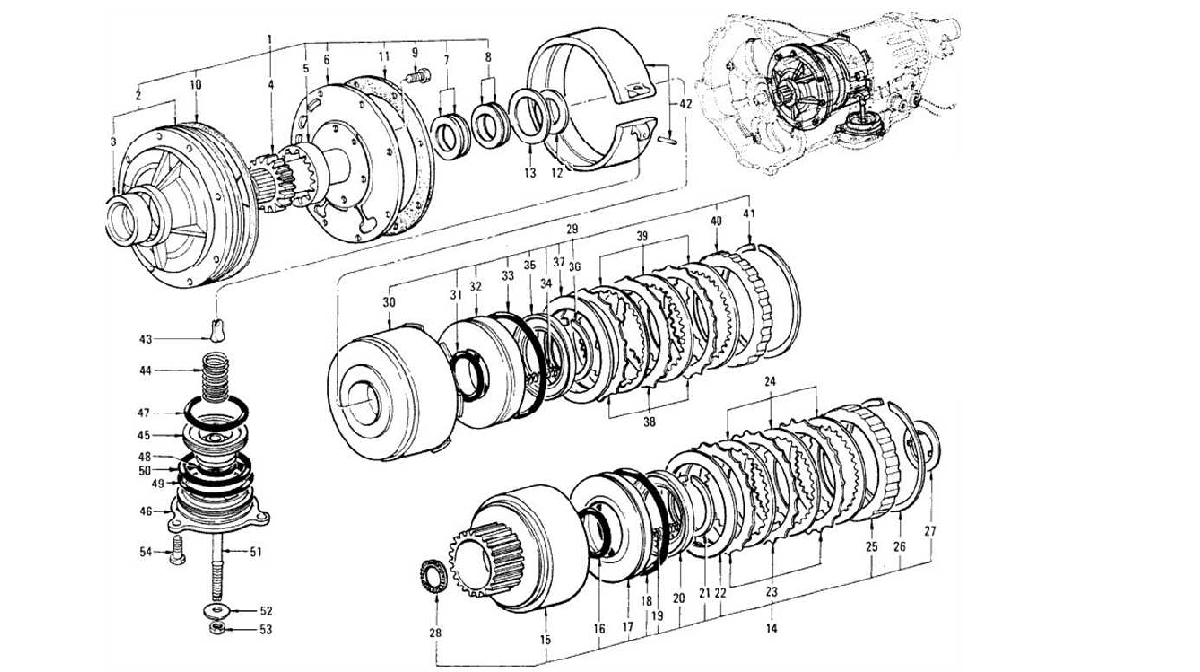

2)  Datsun 1200 Club (Hardware Part Numbers below)											     Drawing(s): A998_1709410146533
____________________________________________________________________________________________________________________________________________________________________________


Hardware Part Numbers															(2) (TXT)










31340-X0100

ASSY-PUMP,OIL
  3N71B






31340-X0101

ASSY-PUMP,OIL
  3N71B 2 31340-X0100




2

31341-X0100

ASSY-HOUSING,OIL
  PUMP 3N71B




3

31344-X0100

SEAL-HOUSING
  3N71B




4

31346-X0102

GEAR-INNER,OIL
  PUMP 3N71B






31346-X0100

GEAR-INNER,OIL
  PUMP 3N71B






31346-X0101

GEAR-INNER,OIL
  PUMP 3N71B




5

31347-X0100

GEAR-OUTER,OIL
  PUMP 3N71B






31347-X0101

GEAR-OUTER,OIL
  PUMP 3N71B






31347-X0102

GEAR-OUTER,OIL
  PUMP 3N71B




6

31350-X0100

ASSY-COVER,OIL
  PUMP 3N71B






31350-X0101

ASSY-COVER,OIL
  PUMP 3N71B 2 31350-X0100




7

31361-X0100

RING-SEAL (44)
  (2) 3N71B




8

31362-X0100

RING-SEAL (43)
  (2) 3N71B




9

08120-61810

BOLT (5) 3N71B




10

31363-X0100

SEAL-LATHE CUT
  RING (200D) 3N71B




11

31366-X0100

GASKET-OIL PUMP
  3N71B




12

31556-X0102

RACE-BEARING,PUMP
  COVER, T=1.6 3N71B




12

31556-X0105

RACE-BEARING,PUMP
  COVER, T=2.2 3N71B




12

31556-X0103

RACE-BEARING,PUMP
  COVER, T=1.8 3N71B




12

31556-X0100

RACE-BEARING,PUMP
  COVER, T=1.2 3N71B




12

31556-X0104

RACE-BEARING,PUMP
  COVER, T=2.0 3N71B




12

31556-X0101

RACE-BEARING,PUMP
  COVER, T=1.4 3N71B




13

31528-X0100

WASHER-THRUST,
  T=1.9 3N71B




13

31528-X0101

WASHER-THRUST,
  T=2.1 3N71B




13

31528-X0102

WASHER-THRUST,
  T=2.3 3N71B




13

31528-X0103

WASHER-THRUST,
  T=2.5 3N71B




13

31528-X0104

WASHER-THRUST,
  T=2.7 3N71B




13

31528-X0105

WASHER-THRUST,
  T=1.7 3N71B




13

31528-X0106

WASHER-THRUST,
  T=1.5 3N71B




14

31540-X0100

ASSY-CLUTCH,REAR
  3N71B




15

31542-X0100

DRUM-REAR CLUTCH
  3N71B




16

31517-X0100

SEAL-O RING
  (54D) 3N71B




17

31514-X0102

ASSY-PISTON,CLUTCH
  3N71B 1272- 2 31514-X0101




17

31514-X0101

ASSY-PISTON,CLUTCH
  3N71B




18

31516-X0100

SEAL-LATHE CUT
  RING (116D) 3N71B




19

31521-X0100

SPRING-PISTON
  RETURN 1 (10) 3N71B




20

31552-X0100

RETAINER SPRING
  3N71B




20

31552-X0102

RETAINER-SPRING
  3N71B 1272- 2 31552-X0100




21

31523-X0100

RING-SNAP (54S)
  3N71B




22

31529-X0100

PLATE-DISHED
  (115) 3N71B




23

31536-X0100

PLATE-DRIVEN
  (115) (3) 3N71B




24

31532-X0100

ASSY-PLATE,DRIVE
  (115) (3) 3N71B




25

31567-X0100

PLATE-RETAINING
  (115) 3N71B




26

31538-X0100

RING-SNAP (118)
  3N71B




27

31439-X0100

RACE-BEARING,REAR
  CLUTCH DRUM 3N71B




28

31555-X0100

BEARING-NEEDLE
  THRUST (2035) 3N71B




29

31510-X0100

ASSY-CLUTCH,FRONT
  3N71B




30

31511-X0100

ASSY-DRUM,FRONT
  CLUTCH 3N71B




31

31517-X0100

SEAL-O RING
  (54D) 3N71B




32

31514-X0101

ASSY-PISTON,CLUTCH
  3N71B




32

31514-X0102

ASSY-PISTON,CLUTCH
  3N71B 1272- 2 31514-X0101




33

31516-X0100

SEAL-LATHE CUT
  RING (116D) 3N71B




34

31521-X0100

SPRING-PISTON
  RETURN 1 (10) 3N71B




35

31552-X0100

RETAINER-SPRING
  3N71B




35

31552-X0102

RETAINER-SPRING
  3N71B 1272- 2 31552-X0100




36

31523-X0100

RING-SNAP (54S)
  3N71B




37

31529-X0100

PLATE-DISHED
  3N71B




38

31536-X0100

PLATE-DRIVEN
  (115) (3) 3N71B




39

31532-X0100

ASSY-PLATE,DRIVE
  (115) (3) 3N71B




40

31537-X0102

PLATE-RETAINING,
  T=11.0 3N71B




40

31537-X0105

PLATE-RETAINING,
  T=11.6 3N71B




40

31537-X0103

PLATE-RETAINING,
  T=11.2 3N71B




40

31537-X0101

PLATE-RETAINING,
  T=10.8 3N71B




40

31537-X0100

PLATE-RETAINING,
  T=10.6 3N71B




40

31537-X0104

PLATE-RETAINING,
  T=11.4 3N71B




41

31538-X0100

RING-SNAP (118B)
  3N71B




42

31630-X0100

ASSY-BAND,BRAKE
  3N71B




43

31624-X0100

STRUT-BAND 3N71B




44

31621-X0100

SPRING-PISTON
  RETURN (10KG) 3N71B




45

31615-X0100

PISTON-BAND
  SERVO (64-44) 3N71B




46

31611-X0100

RETAINER-SERVO
  (64-44) 3N71B




47

31616-X0100

SEAL-LATHE CUT
  RING (64D) 3N71B




48

31617-X0100

SEAL-LATHE CUT
  RING (44D) 3N71B




49

31628-X0100

SEAL-O RING
  (82S) 3N71B




50

31612-X0100

SEAL-LATHE CUT
  RING (80D) 3N71B




51

31618-X0101

STEM-BAND SERVO
  PISTON 3N71B 2 31618-X0100




51

31618-X0100

STEM-BAND SERVO
  PISTON 3N71B




52

31619-X0100

WASHER-STEM
  3N71B 2 08915-44200




52

08915-44200

WASHER-PLAIN
  3N71B




53

08540-70810

NUT 3N71B




54

08160-61610

BOLT (3) 3N71B
